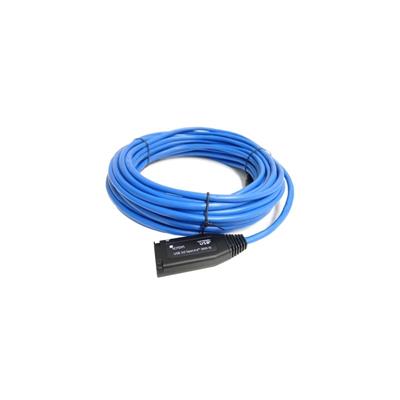

00-00351 USB 3.0 Spectra™ 3001-15 1-Port 15m Active Copper Extension Cable
0
0 customer reviews.
Description :
USB 3.0’s distance limit is approximately 3 meters. When up to 15 meters is required, consider the USB 3.0 Spectra 3001-15 active copper cable. This rugged bus-powered active cable supports USB 3.0 5Gbps throughputs and provides 5V/900mA without the need for an external power source. A true plug-and-play solution, the Spectra 3001-15 cable is compatible with all leading operating systems and features a locking USB port as specified by AIA USB3 Vision™. The cable is warranted for 2 years from the date of purchase. Backward compatibility to USB 2.0/1.1 is not supported by this particular extender.
Item Number: #00-00351
|
|
Product Features
- USB 3.0 extension for 15m
- Supports USB 3.0 throughputs up to 5Gbps
- Bus powered from host PC, no external power supply needed
- USB 3.0 device port provides 5V, 900mA power
- Second USB power connector for use if additional power is required
- Locking USB connector
- Slots on device port for convenient cable tie mounting
- Rugged grade cabling
- Status LED at device port with power, enumeration and over-current indication
- Works with AIA USB3 Vision™ compliant devices
- 2 year warranty
- ExtremeUSB® suite of features:
- Transparent USB extension
- True plug and play; no software drivers required
- Works with all major operating systems: Windows®, Mac OS X®, and Linux®
Specifications
|
RANGE
|
Active Copper Cable: 15m (49.21 ft)
|
|
SPEEDS
|
USB 3.0: Up to 5Gbps (Not backward compatible with USB 2.0/1.1)
|
|
PHYSICAL
|
- USB Connector on Device Side: 1 x USB 3.0 Type A Locking Receptacle
- USB Connectors on Host Side: 1 x USB 3.0 Type A Host Connector; and
1 x USB Type A Power Connector (required for devices drawing more than 2.5W)
- Cable Diameter: 6.9mm (0.27″)
- Jacket Material: PVC
- Bend Radius: 28mm (1.10″)
- Mounting Slots on Device Side: Slots for Cable Tie
|
|
POWER
|
- Power Source: Bus power
- Available Current: 5V, 900mA
|
|
ENVIRONMENTAL
|
- Operating Temperature: 0°C to 50°C (32°F to 122°F)
- Storage Temperature: -20°C to 70°C (-4°F to 170°F)
- Operating Humidity: 20% to 80% relative humidity, non-condensing
- Storage Humidity: 10% to 90% relative humidity, non-condensing
|
|
COMPLIANCE
|
- EMC: FCC (Class B), CE (Class B)
- Environmental: RoHS2 (CE)
- Flammability: VW-1 (UL 1581)
- Machine Vision: Works with AIA USB3 Vision™ compliant devices
|
|
SUPPORT
|
Warranty: 2 years
|
|
|
|
