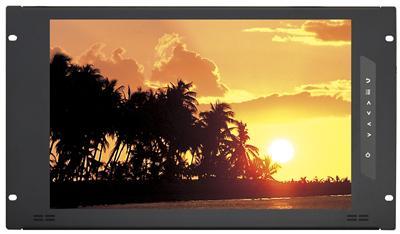

6U 17" WideScreen 1080p High Resolution 1920 x 1080 Rackmount LCD Monitor with HDMI, VGA, Display Port and Audio Connectors
0
0 customer reviews.
Description :
KVMSwitchTech's 6U 17" 1080p High Resolution Rackmount LCD, RKMTL-7U-17-HDCSV TFT unit provides users with a variety of choices such as wall Mounting or Rack Mounting. These rack mount monitor units come with Industrial Grade Samsung LCD which provides users with crisp and clear image. These RKMTL-7U-17-HDCSV, LCDs are a cost effective solution and save you valuable Rack space. Rack LCD units support simple plug and play functionality.
Item Number: #RKMTL-7U-17-HDCSV
|
|
Product Features
- 6U Rackmount 17" Widescreen LCD
- 1920 x 1080 Native Ultra high resolution
- Support full HD with 1080p resolution
- Green LED-backlit panel technology
- 1.07 Billion true colors, 10-bit
- Built-in HDMI / Display-Port / VGA / Audio In/Out with Speakers
- 2-Year Standard Warranty (Upgradable up to 5 years )
- 3G / HD / SD-SDI Broadcast-grade input (Optional)
- 17" Touch Screen : Capacitive, Resistive (Optional)
- 48V, 24V or 12VDC input (Optional)
- MIL-Type or lockable connector (Optional)
Specifications
|
LCD Panel
|
|
Size (diagonal)
|
17.3" TFT
|
|
Max Resolution
|
1920 x 1080
|
|
Brightness (cd/m2)
|
300 |
|
Backlight
|
LED
|
|
Colors
|
16.7 Billion, 8-bit
|
|
Contrast Ratio (typ)
|
1000 : 1
|
|
Viewing Angle (H/V)
|
160° x 140°
|
|
Display Area (mm)
|
381.888H x 214.812V
|
|
MTBF (hrs)
|
15,000
|
|
Signal Input
|
HDMI / Display Port / VGA / Audio in and out w Speakers
|
|
Environmental
|
|
Operating
|
0 to 55°C Degree
|
|
Storage
|
-20 to 60°C Degree
|
|
Relative humidity
|
5~90%, Non-condensing
|
|
Shock
|
10G Acceleration ( 11 ms duration )
|
|
Vibration
|
10~300Hz .5G RMS Random Vibration
|
|
Casing Color
|
Black front panel ( RAL 9005 )
Dark grey rear case ( RAL 7037 )
|
|
Power
|
|
Input
|
Auto-Sensing 100 to 240VAC, 50 / 60Hz
|
|
Consumption
|
Max. 48 Watt, Standby 5 Watt
|
|
Dimensions
|
|
Product
|
480 x 58 x 266 mm / 18.9 x 1.9 x 10.5 inch
|
|
Packing
|
529 x 124 x 451 mm / 20.8 x 4.9 x 17.8 inch
|
|
Weight
|
|
Net
|
6 kgs / 13.2 lbs
|
|
Certifications
|
CE, FCC, RoHS2 and Reach Compliant
|
|
|
|
