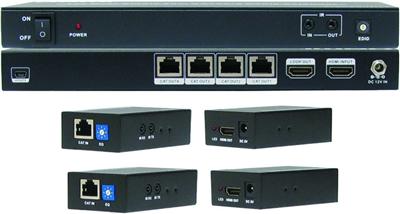

ANI-0104HBC 1x4 HDMI Splitter 164FT (50M) Over CAT5e/6 w/ EDID Control

ANI-0104HBC 1x4 HDMI Splitter 164FT (50M) Over CAT5e/6 w/ EDID Control

0 0 customer reviews.

Description :

The ANI-0104HBC, 1x4 HDMI Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by a CAT5E/6 cable. ANI-0104HBC supports bi-directional infrared control signals together with the HDMI signal, so you can control either the Source or the Display device. Supports full HD resolution for 1080p@60Hz@24 bit/pixels.



Item Number: #ANI-0104HBC

Price: Price Not Available

Product Features

  • HDMI 1.3, HDCP 1.2 and DVI 1.0 compliant
  • Supports full HD resolution for 1080p@60Hz@24 bit/pixels
  • HDMI local loop out for the HDMI input
  • Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
  • Operates for TMDS clock frequencies up to 165MHz
  • Uses a single CAT-5E/6 cable to substitute the HDMI cable to achieve long distance transmissions
  • UTP cable termination follows the IEEE-568B standards
  • Supports EDID control via EDID selector
  • Transfer bi-directional infrared control signal together with the HDMI signal
  • The ANI-0104HBC is NOT compatible with EZ-45 connectors


Specifications

HDMI Splitter Input/Output Ports
  • 2x HDMI female port
  • 4x CAT6
  • 1x IR Transmitter
  • 1x IR Receiver
Receiver Input/Output Ports
  • 1x HDMI female port
  • 1x CAT6
  • 1x IR Transmitter
  • 1x IR Receiver
Frequency Bandwidth
1.485Gbps
Power Supply
  • HDMI Splitter: DC 12V 2.5A
  • Receiver: DC 5V 1A
ESD Protection Human Body Model
  • ± 8kV (air-gap discharge)
  • ± 4kV (contact discharge)
Dimensions
  • Splitter (WxDxH): 4.6 x 9.8 x 1.25 in (118x250x32mm)
  • Receivers (WxDxH): 1.9 x 3.2 x 1 in (49x81x25mm)
Weight
  • Splitter: 1.65 lb / 750g
  • Receivers: 5.3 oz / 150g
Operating Temperature
0°C~40°C/32°F~104°F
Storage Temperature
-20°C~60°C/-4°F~140°F
Relative Humidity
20~90% RH (Non-condensing)
Power Consumption (Max)
  • HDMI Splitter: DC 12V 2.5A
  • Receivers: DC 5V 1A
